Key attributes
|
Type |
Concrete Mixer |
Feature |
Durable |
|
Power Source |
Diesel |
Place Of Origin |
Zhejiang, China |
|
Brand Name |
Sanfine |
Warranty |
1 Year |
|
Customized Support |
Oem, Odm, Obm |
Model Number |
SF-SZ3600/4000 |
|
Application |
Construction |
Color |
Customer's Demand |
|
Core Components |
Pressure Vessel, Engine, Gear, Motor, Pump, Bearing, Gearbox |
Driving Type |
4wd |
|
Capacity |
3.6m³ |
Water Tank Volume |
600l |
|
Max Walking Speed |
24km/H |
Grade Ability |
26% |
|
Applicable Industries |
Construction Works , Energy & Mining |
Engine Power |
78kw Diesel Engine |
|
Machine Weight |
7680kg |
|
Packaging and delivery
|
Selling Units |
Single Item |
Single Package Size |
680X240X300 cm |
|
Single Gross Weight |
7680.000 KG |
|
|
Lead time
|
Quantity (units) |
1 - 2 |
3 - 4 |
5 - 6 |
> 6 |
|
Lead time (days) |
20 |
22 |
24 |
To be negotiated |
Product descriptions from the supplier
Warning/Disclaimer
This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.
#SF-SZ3600/4000

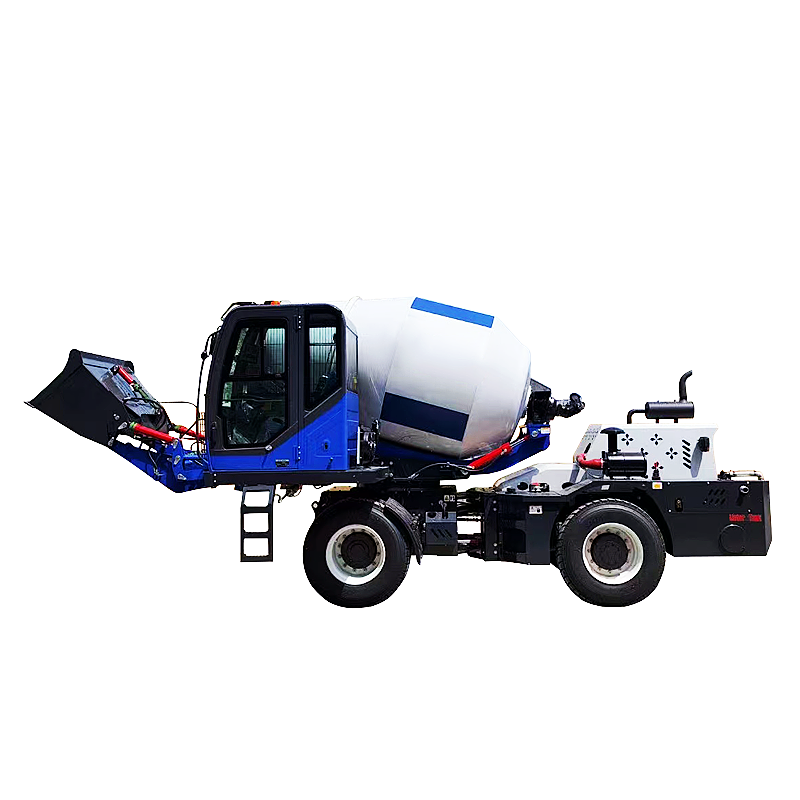

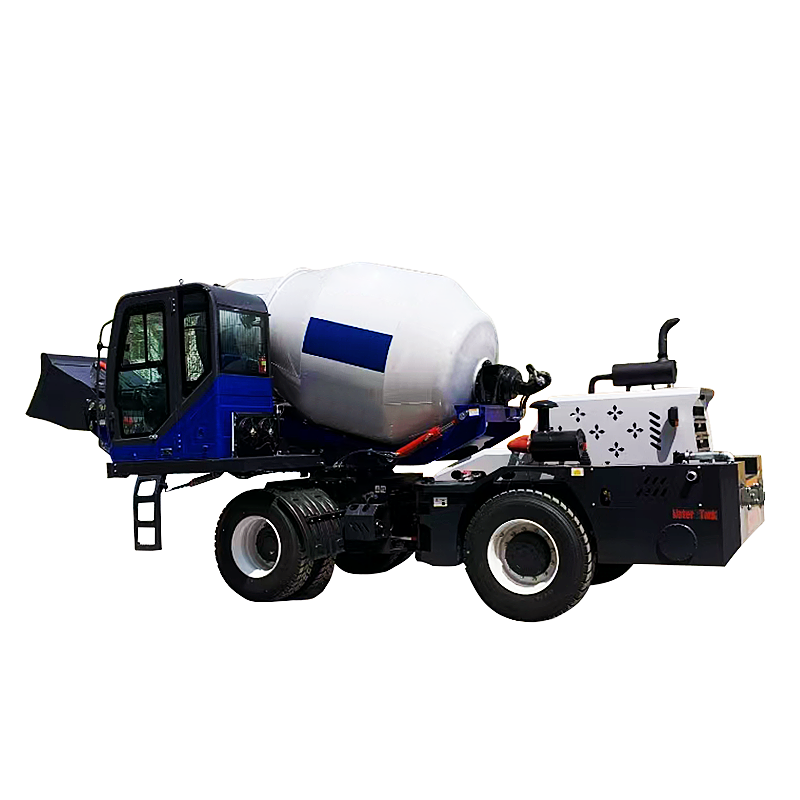

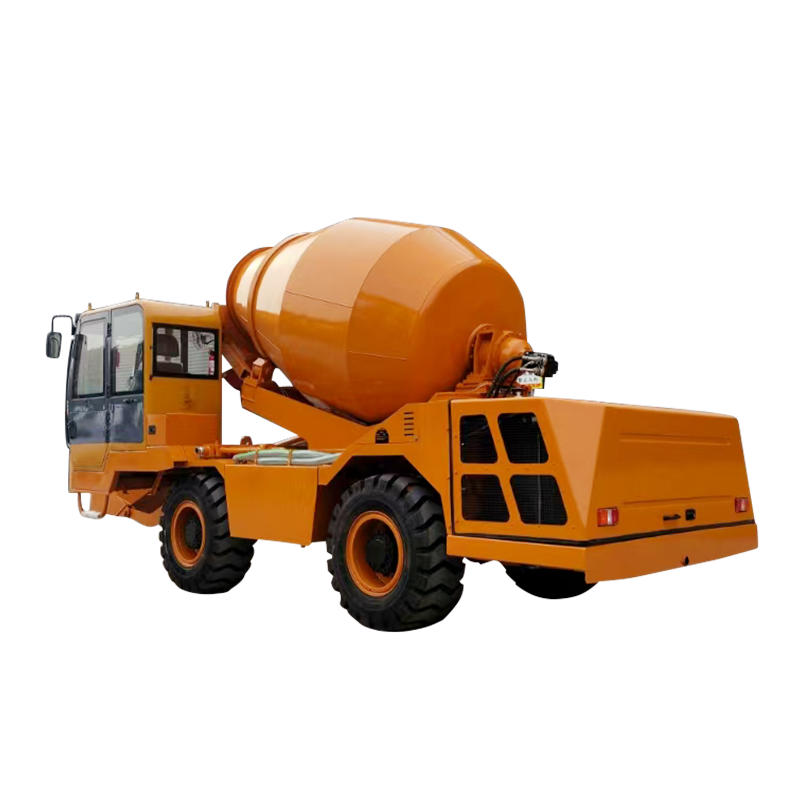

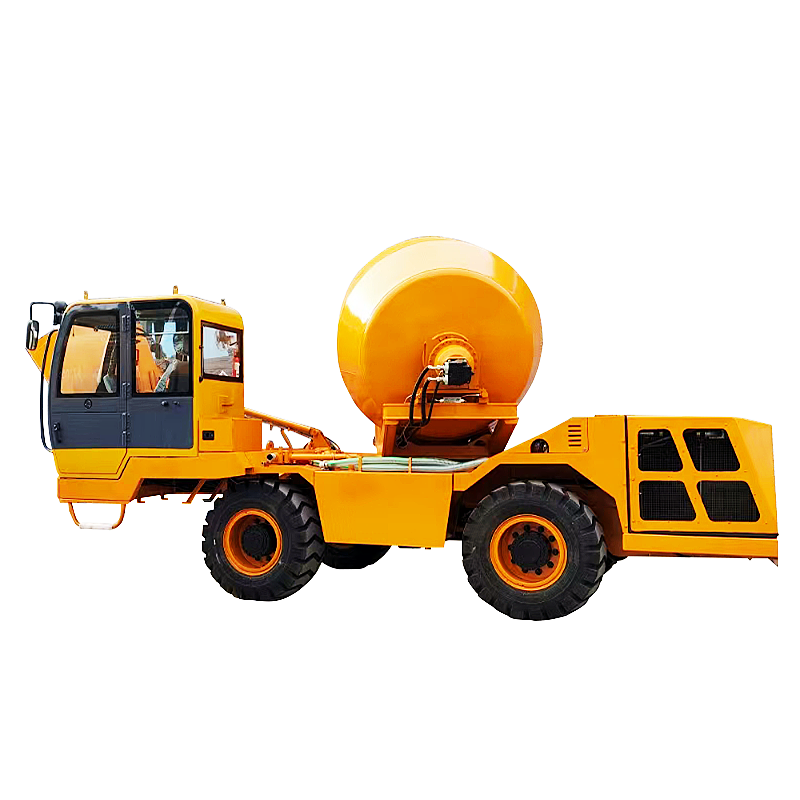

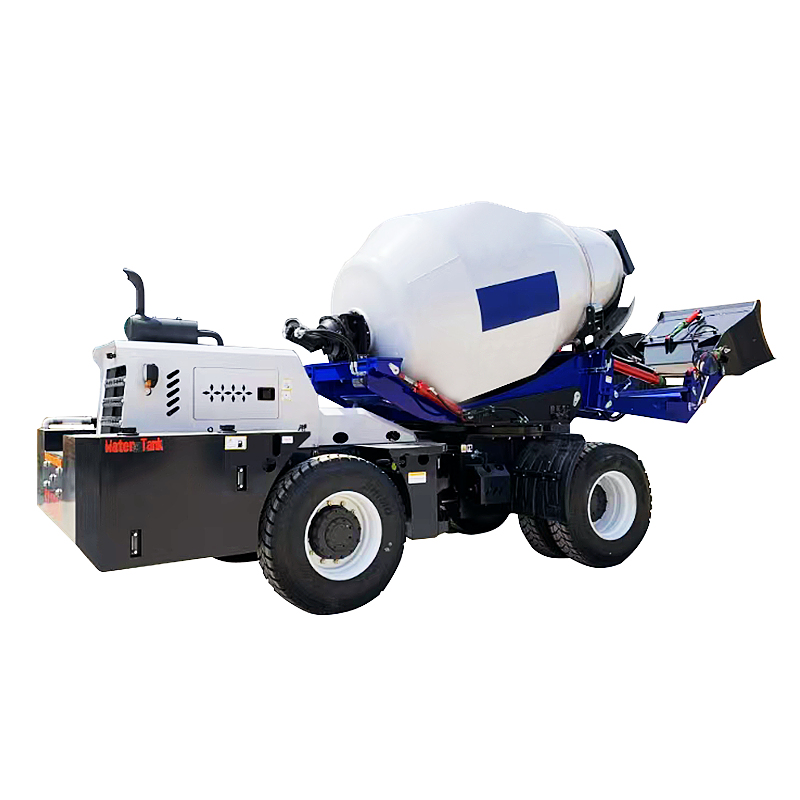

Self-loading Concrete Mixer Truck Mobile Concrete Mixing Trailer Transit Automatic Mud Mixer
FEATURE
1) Italy leading design, automatic feeding mixing system.
2) Simple and convenient operation.
3) High efficiency output, save time and labor, save cost.
4) The perfect combination of mixing truck and loading car.
5) 180 degrees with rotary stirring tank,two-way unloading.
6) Large truck concrete mixer 2m3 concrete mixing car can automatically feed, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel drive.
|
Output Per Lot
|
3.5/3.6 cubic metres
|
|
Drum Rotation
|
The height of the discharge port is 1.8m, The tank body can be raised and lowered with a horizontal rotation of 270 °
|
|
Capacity
|
Up to 4.5 batches per hour, 15.5 cubic hours
|
|
Engine
|
Yuchai Power Ycd4j22t Foshan 15, diesel, water-cooled, 4 cylinders, 2400 RPM, rated power 85KW
|
|
Drive Mode
|
The engine is directly connected to the 280 torque converter, through the drive shaft to the transmission with dual high and low
speed through the drive shaft connected to the front and rear axles to achieve 4-wheel drive |
|
Climb
|
40 degrees
|
|
Speed
|
dual altitude, low speed 0-25 kph, high speed 0-40kph
|
|
Driver'S Seat
|
Widen the luxurious cab of the excavator, front window can be opened, anti-roll, anti-falling object type, double armrest cushion
seat |
|
Hydraulic System
|
Open type oil, plunger type motor, two gear pumps to participate in the work
|
|
Joystick
|
Two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank
|
|

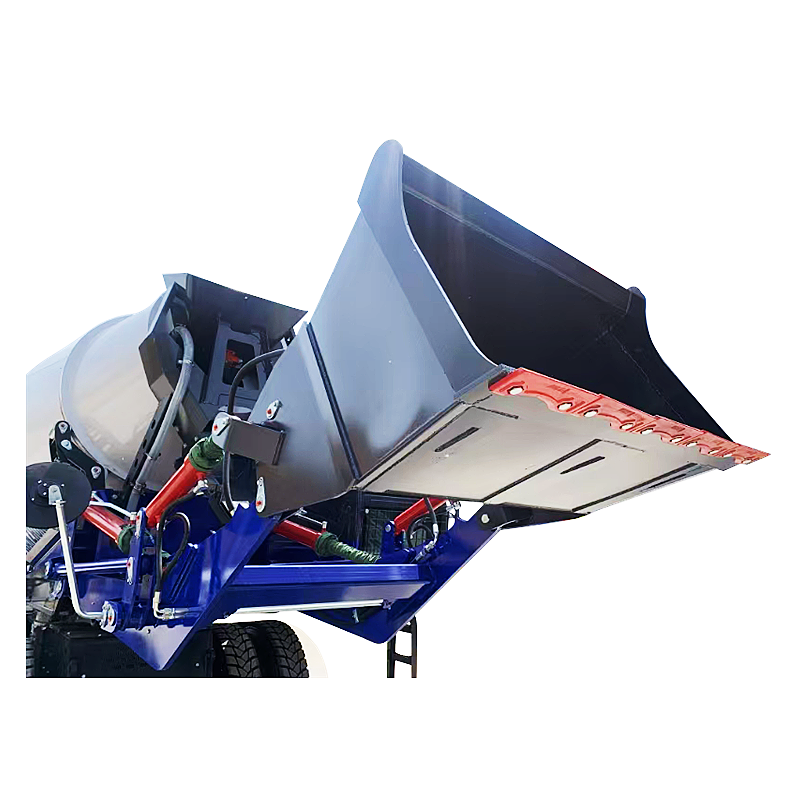

Bucket
|
0.6cubic, hydraulic gate
|
|
Clay Groove
|
Equipped with one 150CM Removable Chute to increase the length of discharge
|
|
Water Supply System
|
Self-priming driven pump, 24V self-timing Centrifugal pump, 24V car wash machine
|
|
Braking
|
Use a small servo pump to enable dual circuit independent braking, and use a single wheel 4-piston vehicle 16 piston to increase
the double brake caliper |
|
Steering
|
Articulated steering with high pressure bearing
|
|
Tire
|
12R-22.5 steel wire high pressure vacuum tire
|
|
Power System
|
24V
|
|
Fuel Tank / Water Tank
|
1 * 800 l water tank, 130 l diesel fuel tank, 130 l hydraulic fuel tank
|
|
Weight
|
8,500 kg
|
|
Length, Width, Height / Wheelbase / Wheelbase
|
7100mm * 2750mm * 3300mm * 2903mm * 2100mm
|
|
Turning Radius
|
2,900 mm
|
|
Other
|
Q345 manganese steel frame, excavator luxury cab, driving impact, cement bucket, air conditioning
|
|
Other
|
Q345 manganese steel frame, luxury cab, driving impact, cement bucket
|
* Before delivery, we will arrange our staff to take photos and videos of your machine.
* The extra security packing will be carried out for the nude cargo.
* Ropes and triangle blocks will be used for fixing forklifts.
* We also offer wooden packing way to make the forklifts safer.
* Product certificates and nameplates are provided.
* A tutorial CD, tool box and extra paint are included as free gifts.
Reliability of the machine:
Our machines are very popular with customers and can be adapted to different environments for different jobs.
You can choose the accessories you want according to your needs to unlock more functions.
Attachment customization:
We design and produce different types of machine accessories, we can also customize the accessories required by customers to meet your any needs.
Exceptional Support:
When you choose, you're not just getting a machine; you're gaining a partner.
Our dedicated support team is here to assist you with any questions or concerns, ensuring your satisfaction.
Welcome to contact us, we will provide you with the best quality service and the biggest discount!

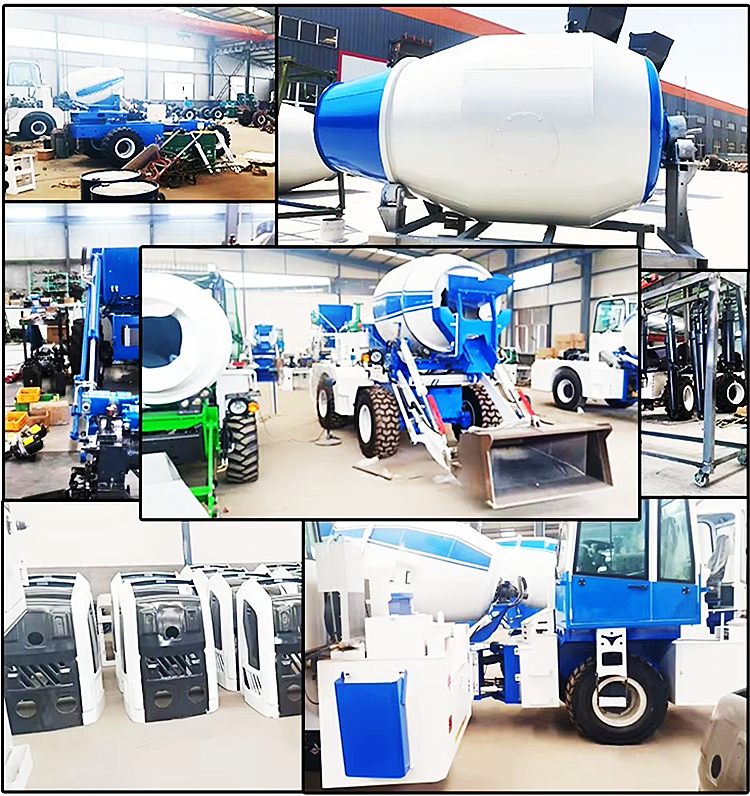

Factory & Workshop

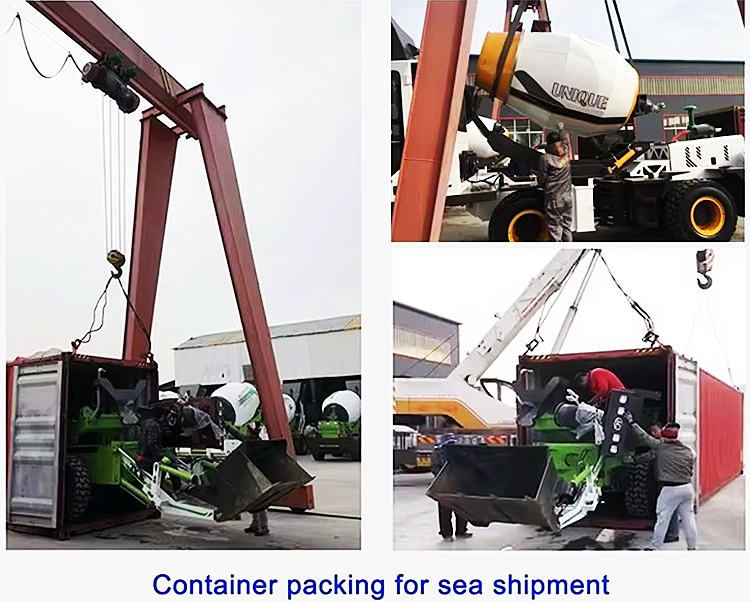

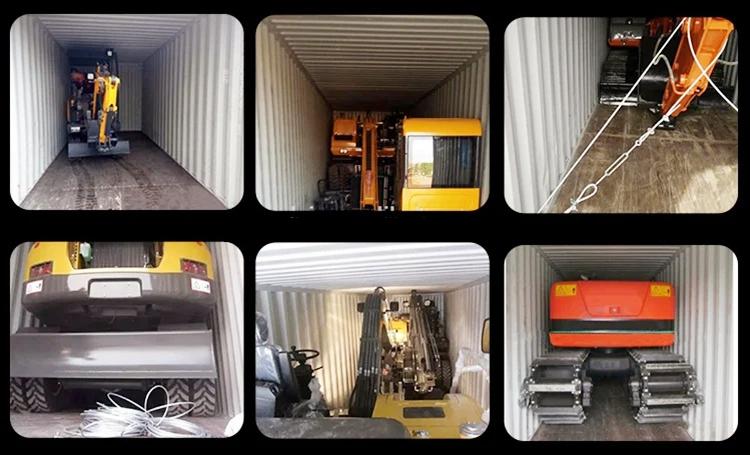

Packaging & Shipping
