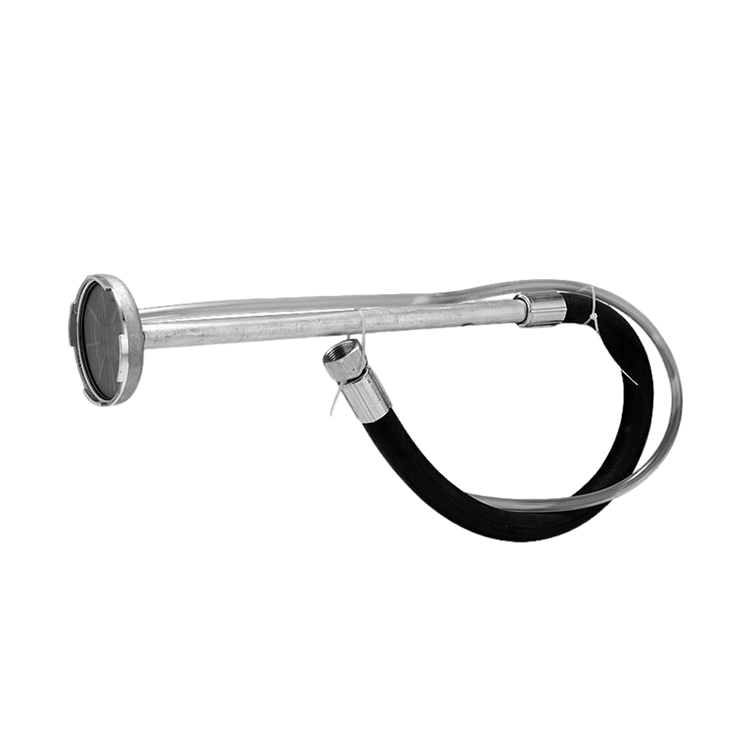

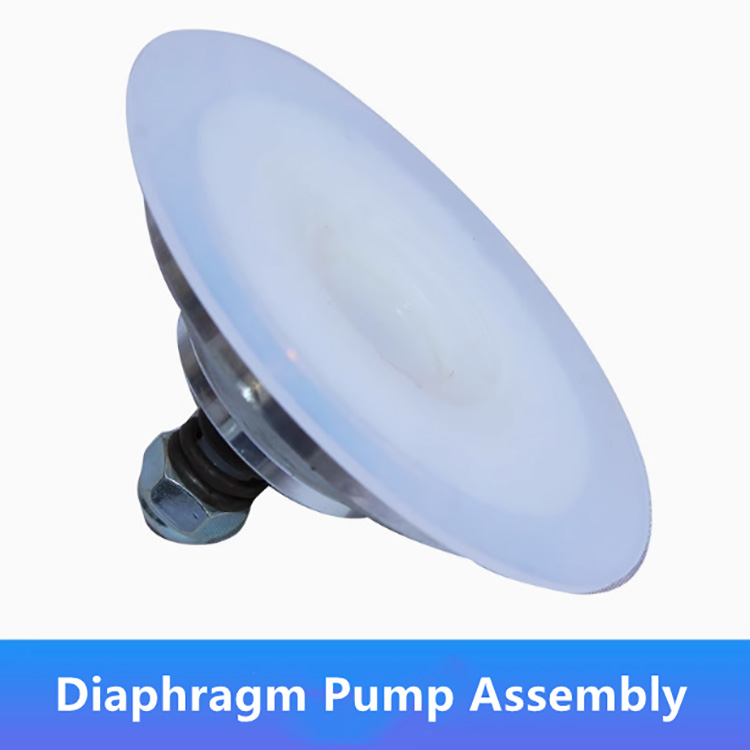

Diaphragm Pump Airless Sprayer Spare Parts Suction Tube Sealing Pump Body Assembly Spray Gun Filter Repair Kit Universal Valve



We manufacture and export the following series of construction products, it’s very mature line to us :
1) Airless paint spray guns, putty spray guns, cement spray guns series;

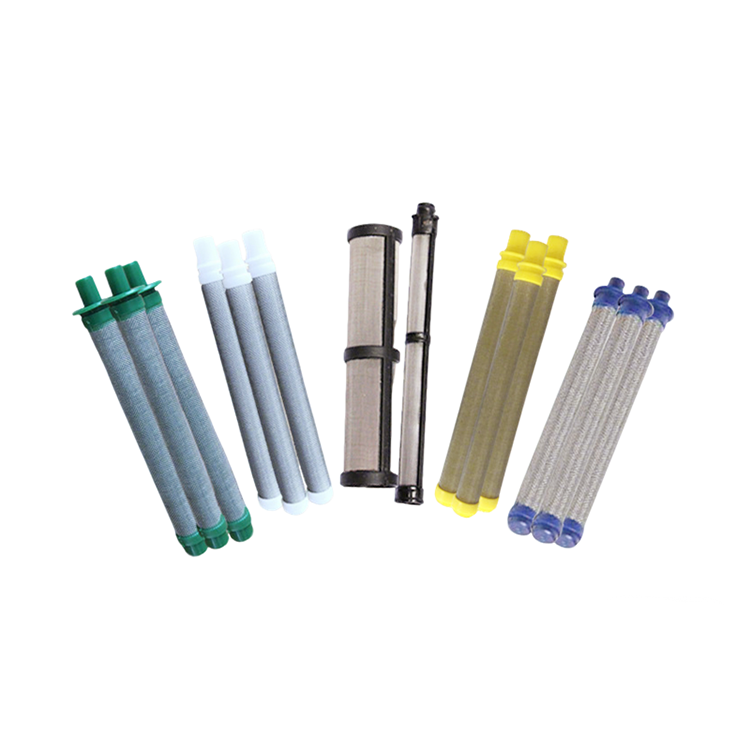

2) spray gun nozzle tips, gun filter, gun repair kit series;
3) spare parts for GR, WGR sprayer series;
4) diaphragm pump airless paint sprayers series;
5) piston pump airless paint sprayers series;
6) putty sprayers, electric or gasoline series;
7) texture sprayers series;
8) jet paint rollers series;
9) cement or mortar sprayers series;
10) road line paint sprayers series;
11) pipe inner wall paint sprayers series;
12) drywall sanders series;
13) Demolition Hammers series;
14) putty scrapers, cement sander series;
15) stainless wire hooks, wire twisters, automatical tying bar machine.
16) All kinds of WGR , GR , TITN types of spray guns, gun filter, gun repair kit, blue , black, grey , yellow, red nozzle tips, nozzle guard, spray guide tool, extension pole, swivels, manifold filter, inlet filter, hose connector, pressure hose, 390/490/495/440/740/840/695/1095/7900/5900/960 electronic control board, pumps, cylinder, pump repair kits , cylinder, piston rod, prime valve, out-valve seat, etc.

All of sprayer machines have SAA, CE, EMC certificates. They are competitive price and quality.

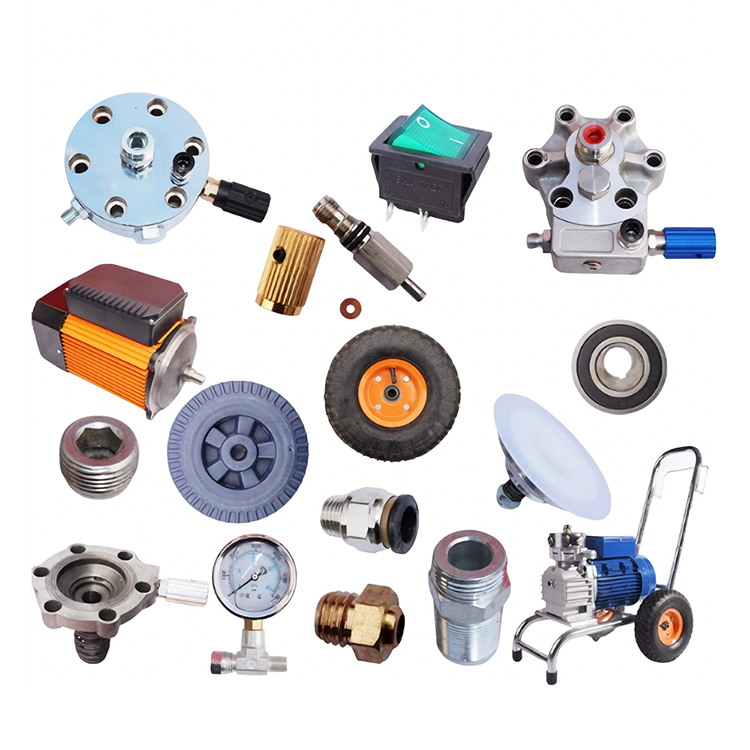

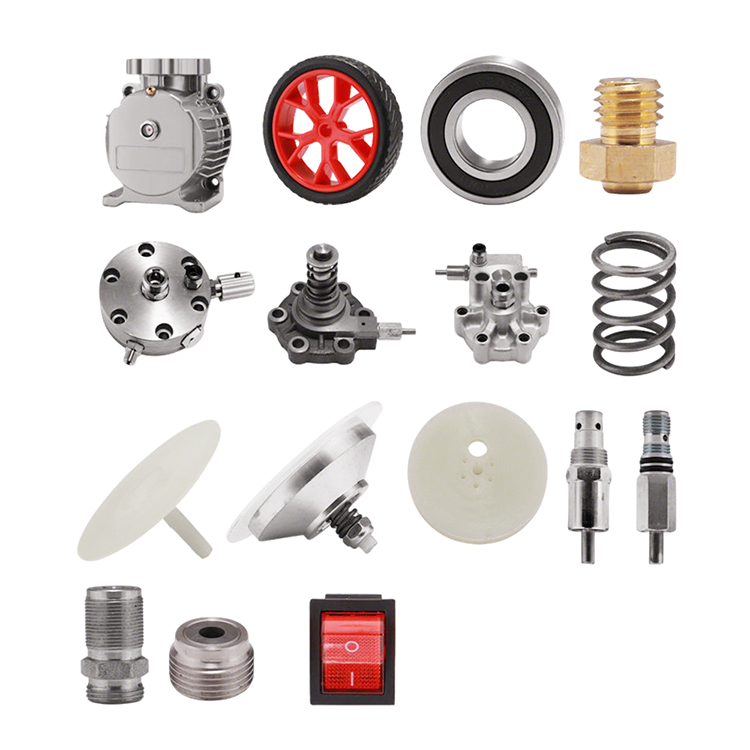

Name	Diaphragm Pump Airless sprayer spare parts
Item NO.	SFP2742
Size	1/4" 18 thread or 1/4" 19 thread------to connect spray hose 7/8" to connect tip guard or nozzle guard
Material	Aluminum, stainless steel, copper, tungsten steel, carbide, poly A Tsuen

Features:

Widely used to spray painting for airless spraying machine.

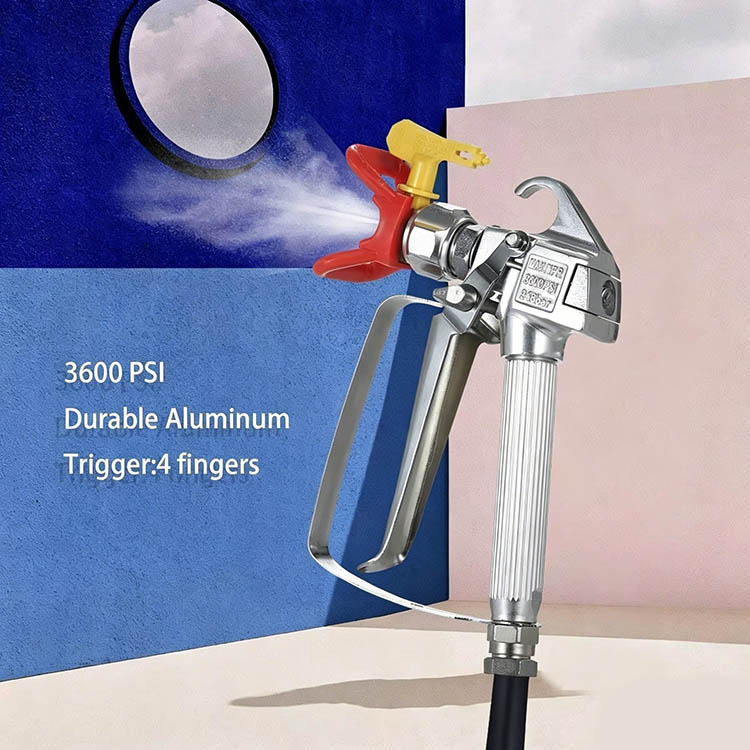

Durable 3600PSI nozzle airless sprayer gun.

Great atomization effect and anti switch for cleaning ability & switch.

Ergonomically designed handle to reduce spraying fatigue, easy to use and clean.

Compatible for Graco, Titan, Wagner spraying machine.

With red airless sprayer nozzle seat guard to protect your sprayer gun from scratches and keep its effectiveness.

Steps to use:

1. First of all, the paint was removed to check whether there is a rupture damage, found that should be replaced immediately.

2. That will have the air pressure of the trachea access to the end of the handle end of the air inlet connection, you must check into the air outlet and each part of the connection whether have a leak, there is leakage phenomenon should be even maintenance.

3. According to the requirements of the quality of the paint required to adjust the application of the paint gun.

How to maintain:
1. Every time the use of tools from the tool air inlet filling 3 to 4 drops of special gas oil to reduce wear and prolong the service life of the tool.
2. To ensure that the supply of gas source tool dry, no impurities.
3. Regular cleaning, gas maintenance, timely replacement of worn parts.
