Key attributes
|
Power Source |
Petrol/Gasoline |
Type |
Airless Spray Gun |
|
Application |
Paint Spray Gun |
Cup Capacity |
No Ceiling |
|
Place Of Origin |
Zhejiang, China |
Max Pressure |
4000psi |
|
Nozzle Size |
1.3mm, 0.8mm, 1.0mm, 1.4mm |
Grade |
Diy, Industrial |
|
Warranty |
1 Year |
Customized Support |
Oem, Odm, Obm |
|
Accessories |
Sprayer Gun And Hose |
Brand Name |
Sanfine |
|
Model Number |
SF-PTG9 |
Weight |
4kg |
|
Motor Power |
Brushless Motor |
Air Inlet |
1/4inch |
|
Color |
Customer's Requirements |
Packing |
Wooden Packing |
|
Function |
Waterproof Mending Leakage Paint |
Pressure: |
500 Bar |
|
Heater Power |
5400w Each Side |
Max.Flow |
15l/Min (Double Pump Body) |
|
Voltage |
380v/50hz/3phase |
Applicable Materials |

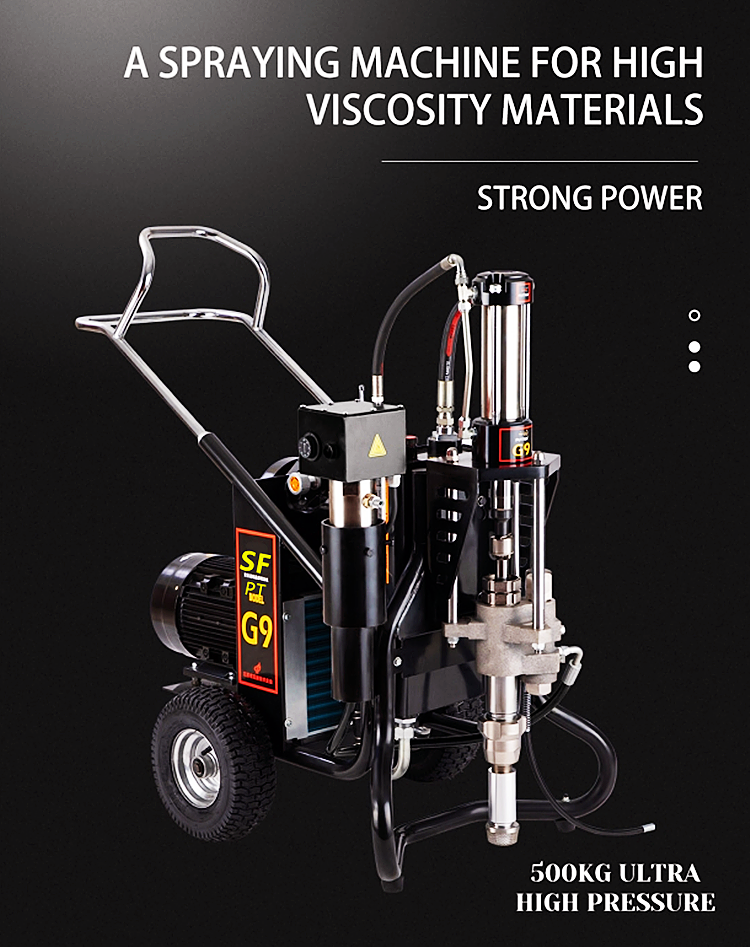

High Viscosity Material |
Packaging and delivery
|
Selling Units |
Single Item |
Single Package Size |
120X80X110 cm |
|
Single Gross Weight |
230.000 KG |
|
|
Lead time
| Quantity (sets) | 1 - 1 | 2 - 4 | > 4 |
| Lead time (days) | 2 | 4 | To be negotiated |
Product descriptions from the supplier
Warning/Disclaimer
This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.

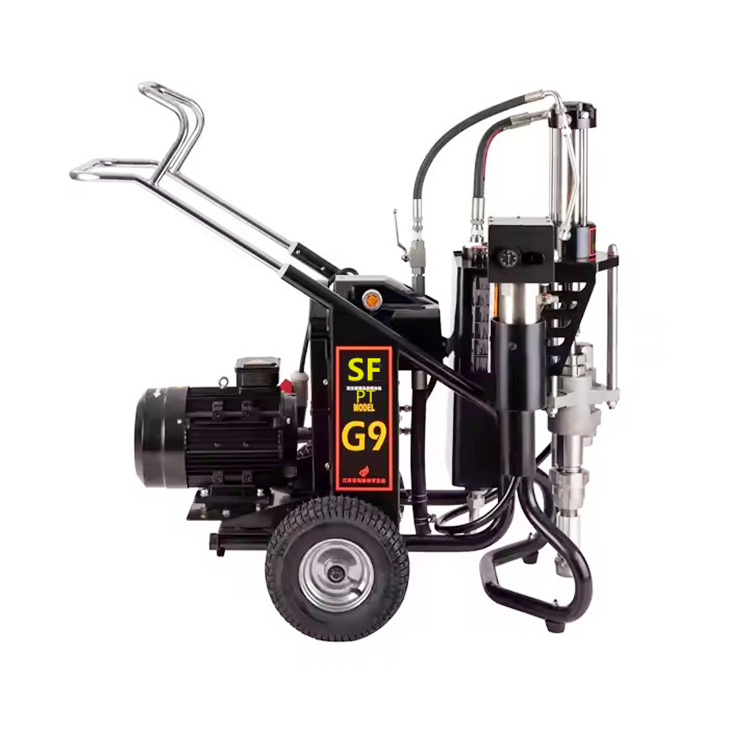

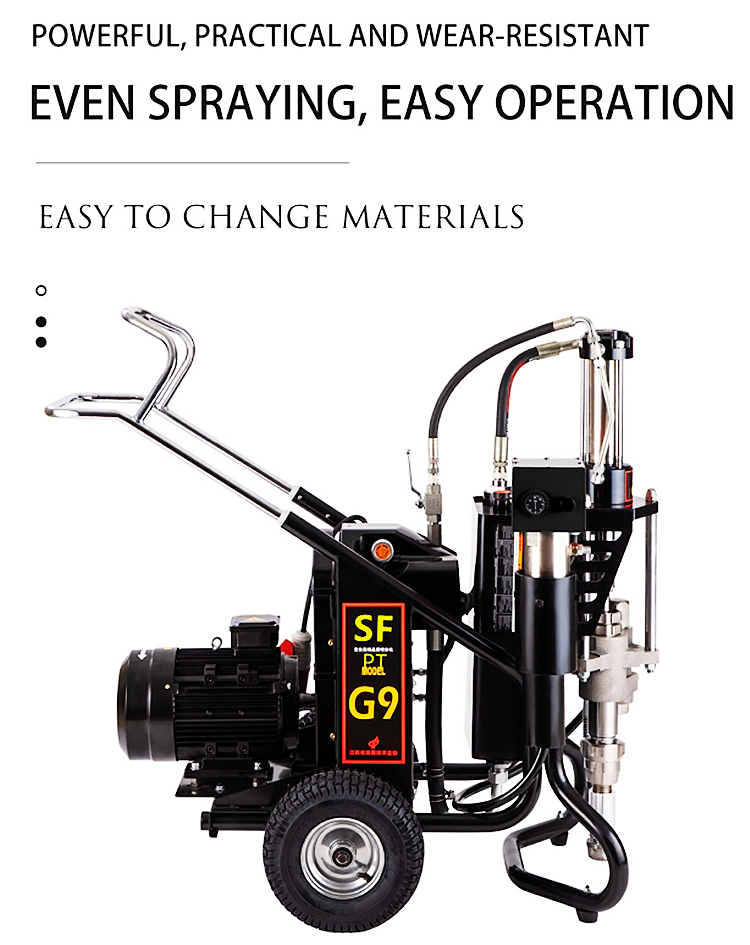

Model#SF-PTG9

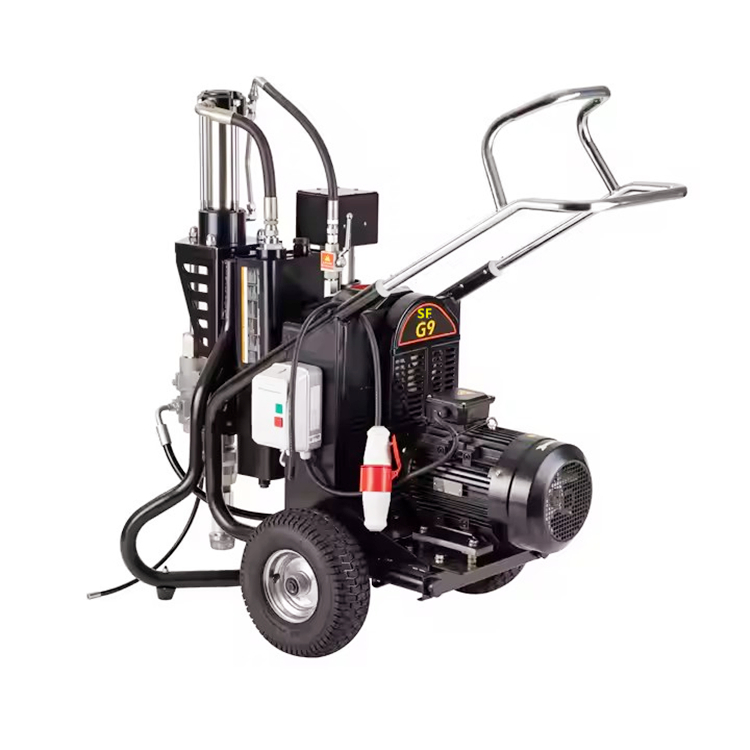

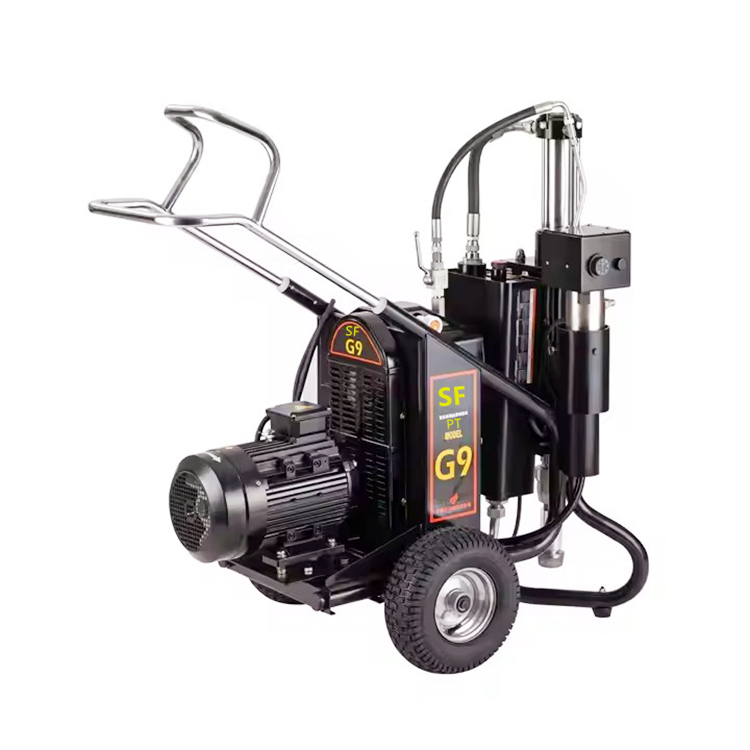

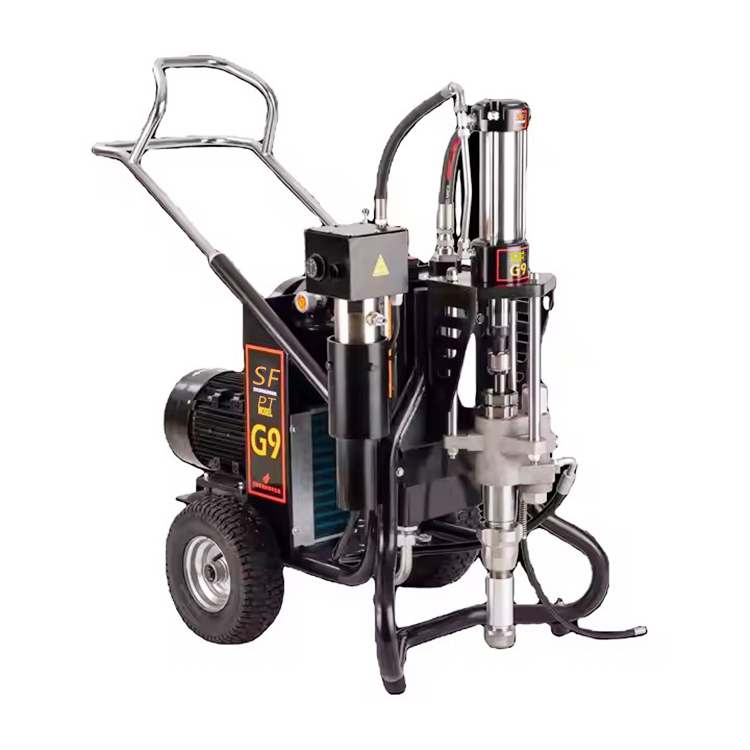

Ultra High Pressure Airless Sprayer Hydraulic Pump with 5:1 Pressurized Tank
Specification:

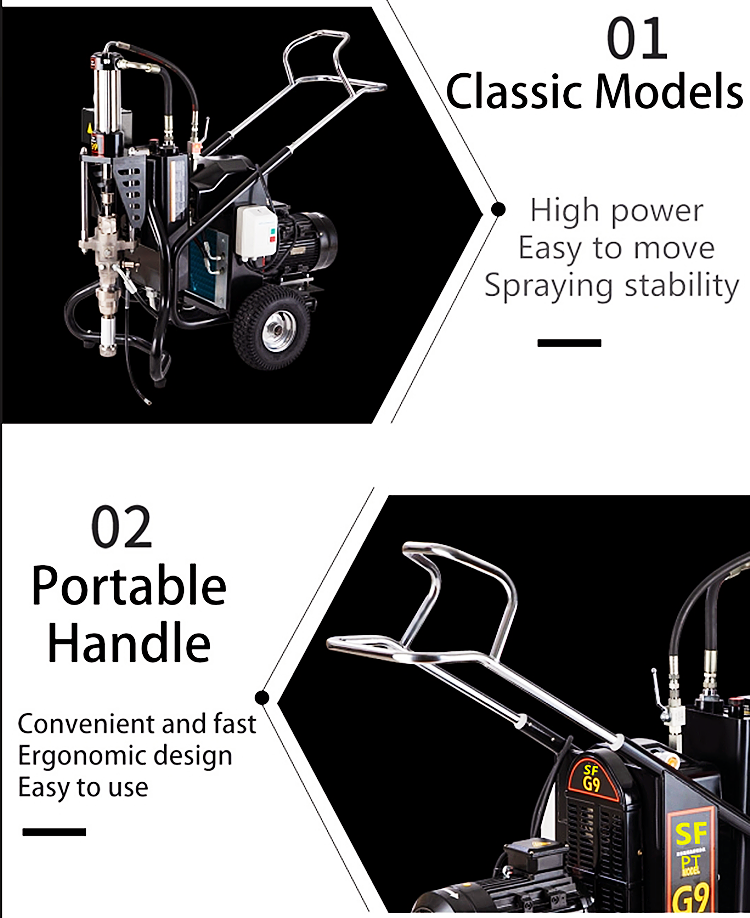

Rugged and Durable Steel Frame
• Welded, heavy-gauge steel construction
• Integrated, fully-balanced lift points
• Easy-roll pneumatic tires (steel tube structure)
• Enamel-coated steel tubing for corrosion resistance
• Multi-function design converts to skid mount in seconds
— Simply move the handle to the lower frame holes for a quick and secure transition.
|
Item |

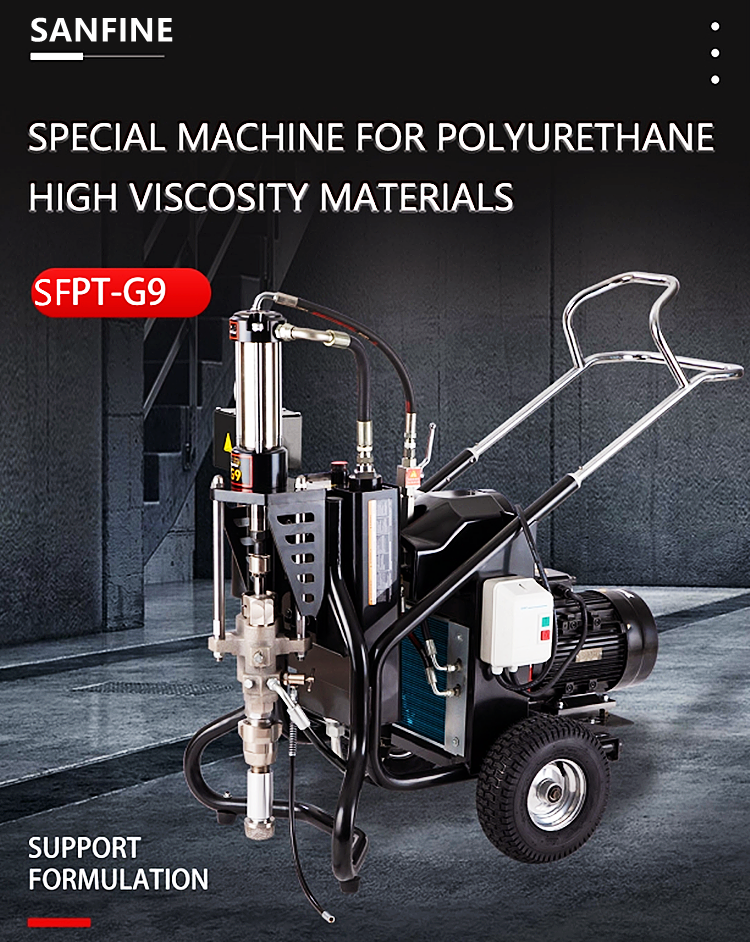

Airless polyurethane spraying machine |
|

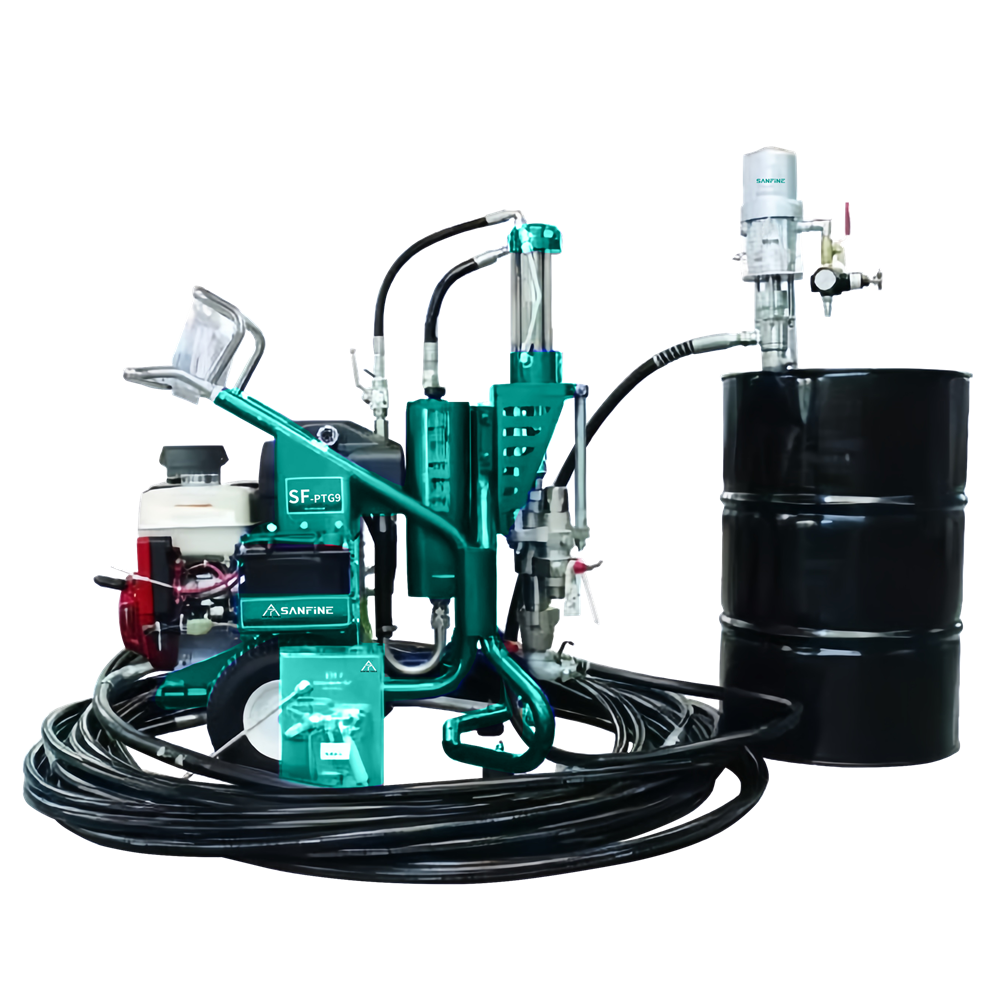

Standard configuration |
Proportion Fixed Mainframe: 1 set |
|
|
Self-cleaning spray gun: 1 set |
|
|

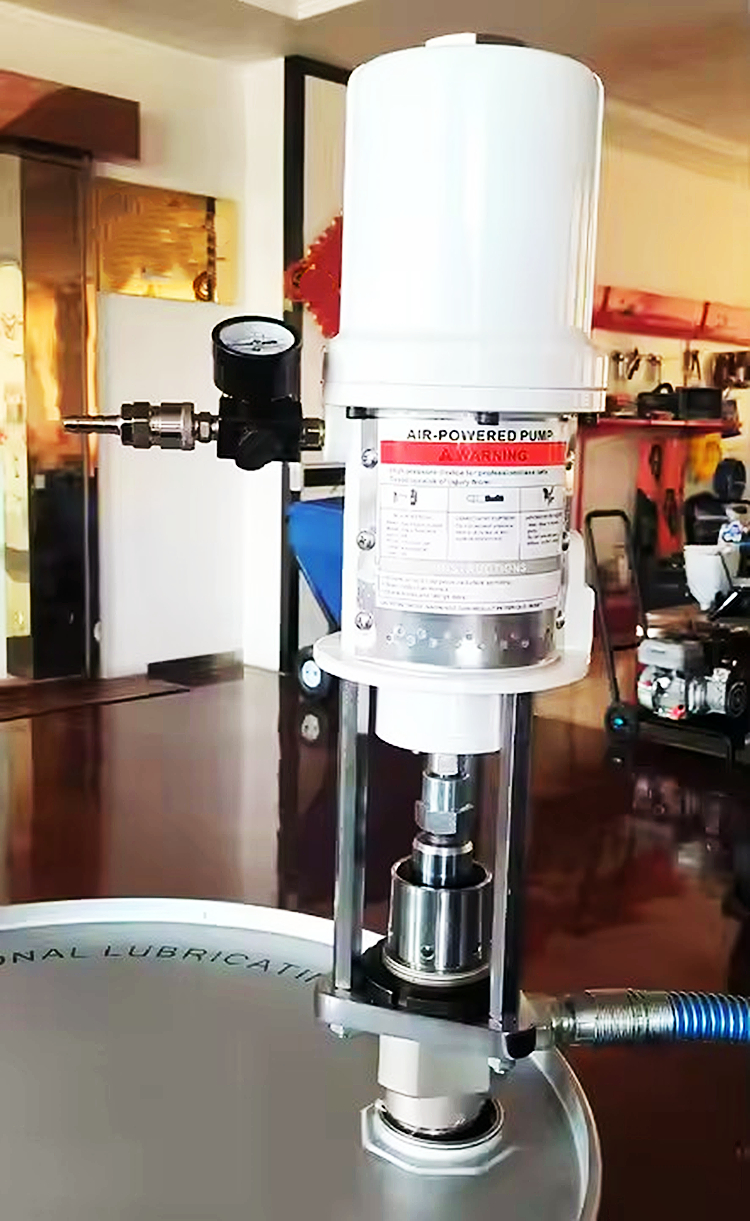

Feeding pump: 2 sets |
|
|
Heating hose: 49.2 feet (15m) |
|
|
Connecting hose from feeding pump to machine: 10 feet(3m) |
|
|
Connecting hose from heating hose to gun: 5 feet(1.5m) |
|
|
Rings and Tools |
Heavy-Duty Hydraulic System
• Faster and more responsive changeover
• O-ring sealed to prevent leaks
• High-precision pressure control
• No hydraulic reset button required
• Durable hydraulic lines for extended service life
High-Capacity Cooling System
• Large 4-gallon hydraulic reservoir
• Return-line hydraulic filter for extended system life
• No special hydraulic fluid required
• Proven cooler and blower system
• Easy-to-use drain plug for quick fluid changes

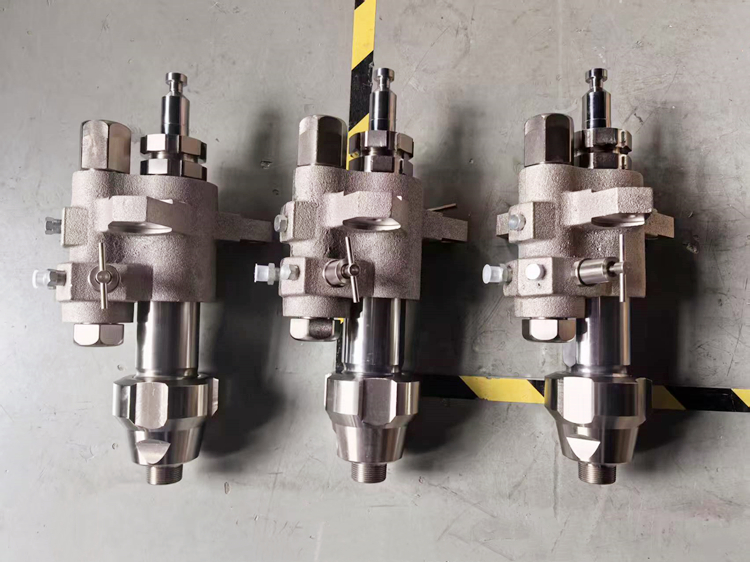

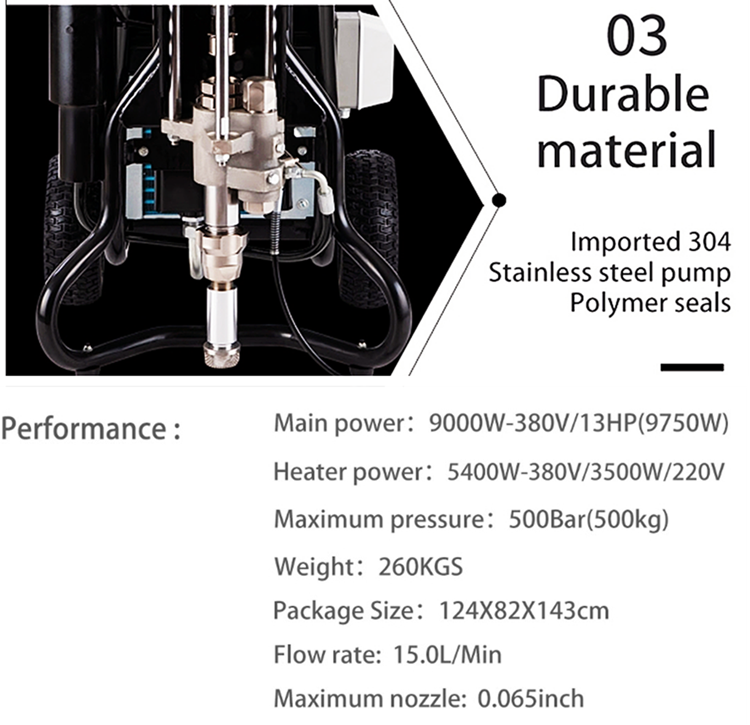

Imported Ultra-Durable, Wear-Resistant Pump
• Easily replaceable pump section
• Time-tested durability and performance
• Long-life seals and leather packings
• Reinforced piston rod for extended lifespan

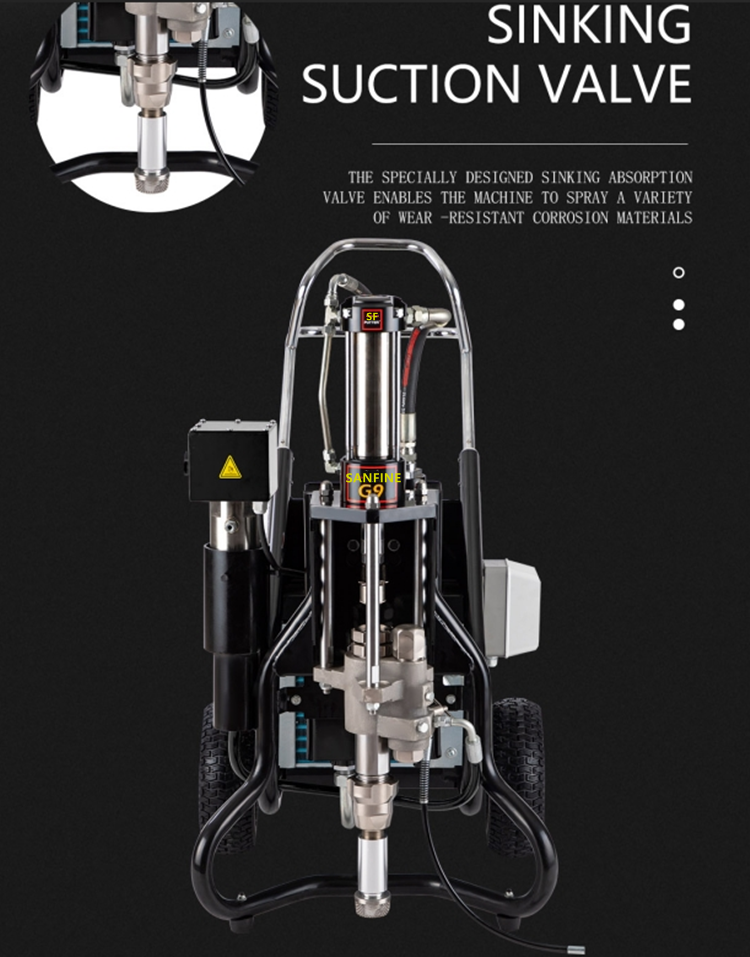

• Intake valve designed for quick removal and easy maintenance
Additional Features
• Lockable pressure control knob
• Grounding wire for safety when using solvent-based materials
• Large-diameter siphon hose

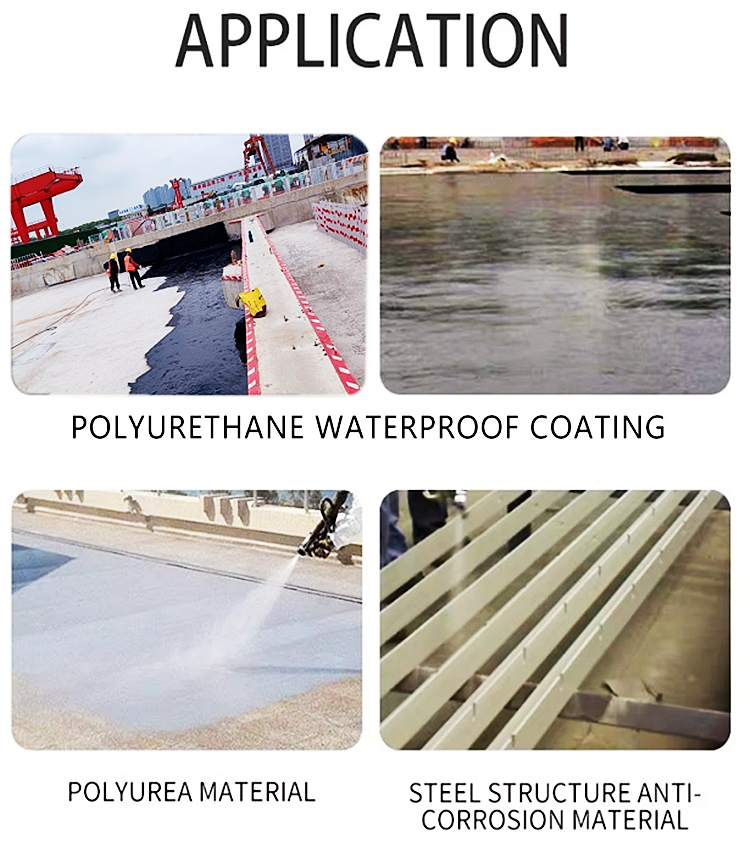

Application:
1. Compatible Materials:
Acrylic resins, block fillers, coal tar, contact adhesives, elastomeric coatings, enamel, epoxy, fibered aluminum emulsion,fibered asphalt emulsion, intumescent, mastic, non-fibered aluminum emulsion, non-fibered asphalt emulsion, paints, polyester,polyurethane, primers, silicones, textured coatings, waterproofing materials, and more.
2. Working environment:
It is recommended to be used in large industrial sites, bridges, steel structures, roofs and other large-area spraying environments.
FAQ & QA
Can SF-PTG9 spray polyurea?
Yes, with proper heated hose and pre-heating.
Can it spray water-based paint?
Technically yes, but not recommended. Best for heavy coatings
Is it hard to maintain?
Easy maintenance. Check seals/pump every 200 hrs.
Can it be air shipped?
Yes, engine must be drained; ship as hazardous goods.

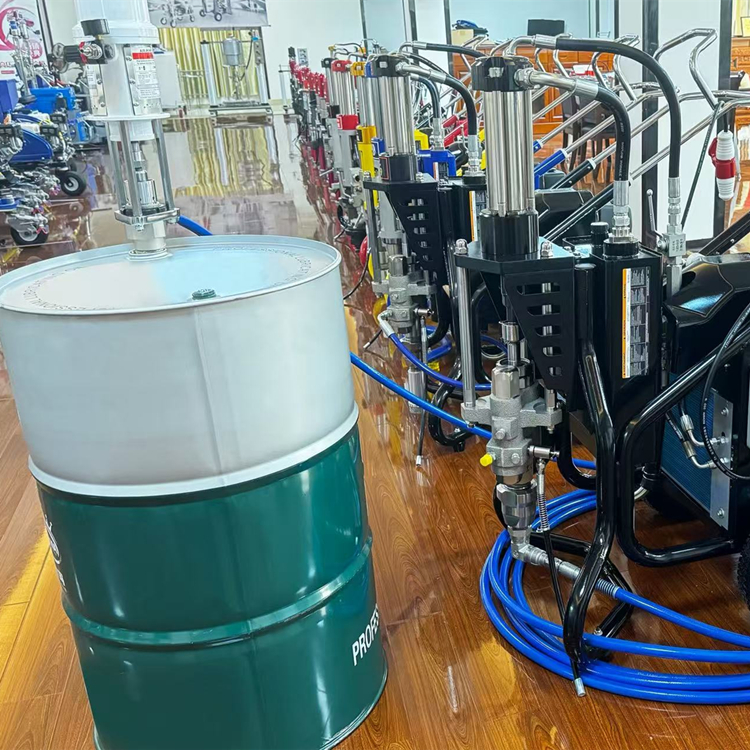

Factory & Workshop
